Connect the SmartGateway to the network or connect directly to Network socket on the PC. If you connect the SmartGateway directly to the PC be sure to use a Cross Over Network cable.
The 5 way green socket is used to connect to System16 Queue Management hardware.

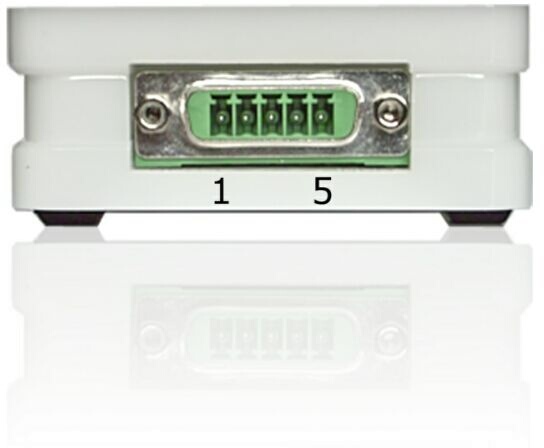

SmartGateway System16 Socket
Pin no. |
Description |
1 |
No Connection |
2 |
+15V DC |
3 |
DATA |
4 |
CLOCK |
5 |
0 |
For test purposes it is only necessary to connect +15V DC and 0, to a suitable power supply. The SmartGateway activity LEDS will show Yellow while the SmartGateway is booting, approx 20 seconds. When only one LED is active you are ready to Login and configure the SmartGateway.
